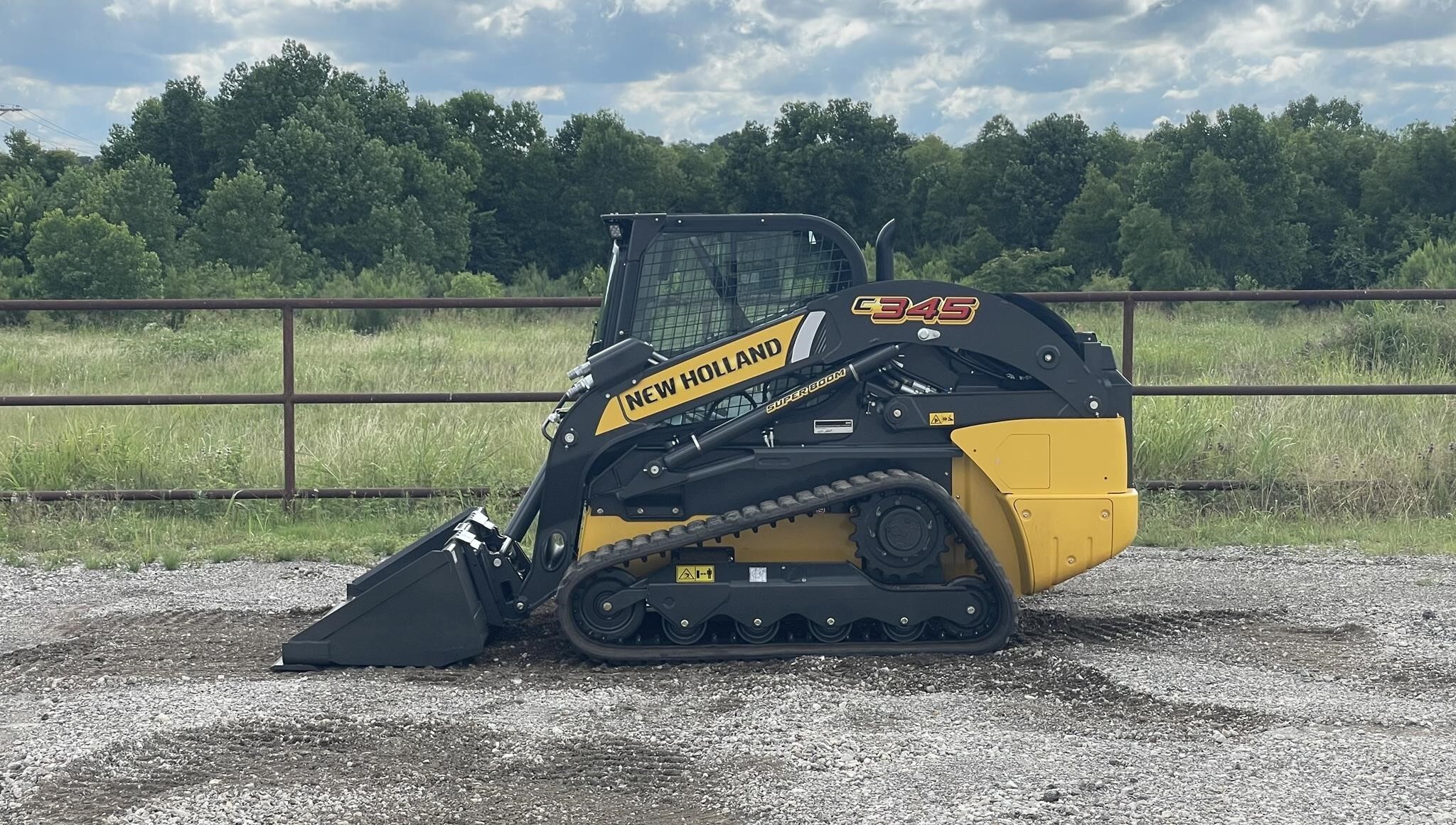

Dealer: DEALER DESCRIPTION: NEW HOLLAND C345 SKID LOADER 2025 -ENGINE: 90HP -LIFTING CAPACITY: 4500 lbs (2045 kg) at 50% tip -CAB: ENCLOSED -HYDRAULICS: HIGH FLOW -OPERATING WEIGHT: 10
610LBS -BUCKET SIZE: 84" MANUFACTURER DESCRIPTION: NEW HOLLAND C345 COMPACT TRACK LOADER BEYOND PERFORMANCE The New Holland 300 Series is built around you with reliable engines that deliver a more powerful performance while using less fuel than previous models. They are durable
easy to maintain and work hard to reduce your operating costs. Three different auxiliary hydraulics packages give maximum versatility. Offering class-leading space
comfort and ergonomics
the cab also provides excellent all-round visibility and reduced blind spots. 300 Series compact track loaders are reliable workhorses that deliver high performance in all conditions. Model C345 builds on the strength
visibility
power and smooth ride you ve come to expect from New Holland CTLs with the addition of key enhancements that improve durability
operating ease and overall productivity. FEATURES POWER THROUGH TOUGH JOBS The reliable hydraulic system of the C345 delivers fast cycle times
raising in just 5.1 seconds and lowering in only 3.5 seconds
in addition to producing less noise and providing extra-smooth operation due to in-line hydraulic pumps. New Holland Tier 4 Final engines deliver powerful performance
use less fuel
are easy to maintain - decreasing operating costs - and still deliver powerful 90 HP (67 kW) performance to the C345. SMOOTH RIDE
EXTENDED LIFE The low-profile track undercarriage of the C345 that provides 9.6 inches (244 mm) of ground clearance makes cleanout a breeze
reduces noise and increases durability. The loader also yields a smoother ride with 64.5 inches (1639 mm) of track on ground
thanks to steel-embedded tracks rolling on the rubber instead of steel. Fewer moving parts than competitive designs mean less complexity and complications
all adding up to longer track life. LIFT AND CARRY OPERATIONS The vertical lift linkage delivers up to 31.6 inches (802 mm) of dump height reach and a maximum dump height of over 100 inches (2568 mm) to precisely place loads in the center of high-sided truck boxes or hoppers. With a full rated operating load of 9
000 lbs (4091 kg)
4
500 lbs (2045 kg) at 50% tip and 3
150 lbs (1432 kg) at 35% tip
the C345 is optimized for lift-and-carry operations
allowing operators to load material with precision and confidence. 8 LCD MULTIFUNCTION DISPLAY MAKES OPERATION EASIER The LCD display with an integrated back-up camera helps you operate a 300 Series loader with greater ease and confidence. At 8 inches in size and mounted conveniently on the right forward post
the LCD display puts all the information and tools for greater productivity right where you need it. The display provides key operation data
including engine and performance information
RPM
fuel level
battery voltage
hydraulic oil temperature
engine temperature
and trip screen. The integrated backup camera increases visibility to the rear of the loader
improving operator efficiency and safety. You can set the camera for always on or to engage only when shifting the loader into reverse gear. WIDE
COMFORTABLE CAB WITH SUPERIOR VISIBILITY New Holland 300 Series loaders make comfort a priority to boost productivity on the job. More comfort starts with the cab itself
one of the widest in the industry
so it's easy to enter and exit. Full-covering trim absorbs noise
and the visibility panel on the cab roof gives you a clear view in all directions
even to the raised bucket or attachments. The fully sealed and pressurized cab minimizes dust and exhaust infiltration. Seat choices include the optional suspension seat or the heated
composite air-ride seat for maximum support and ultimate comfort. An optional
factory-installed lap bar is offered on all 300 Series models. All loader models also feature an optional 8-inch LCD display with integrated rear camera
Bluetooth radio (satellite-radio ready) and a USB port. EASY ACCESS
SIMPLIFIED SERVICE Hassle-free access on 300 Series compact track loaders makes daily service and maintenance that much easier. The rear door and hood provide straightforward service access for periodic maintenance and daily checkpoints. Access engine oil
fuel fill
hydraulic oil
coolant and radiator points without tools
and clean the radiator from either side. If ever needed
the entire cab can be tilted forward for unrivaled access to components and easy cab cleanout. Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice. Engine Manufacturer/model FPT / F5BFL413E*B002* Type Diesel 4-stroke
turbo
D.I. Bore/stroke
in (mm) 3.9 x 4.3 (99 x 110) Displacement
in3 (L) 207 (3.4) Fuel injection HPCR Direct Fuel #2 diesel Fuel filter Pre-filter 99.8% @ 30 microns
Main filter 95% @ 4 microns Air intake Turbocharged Aftercooled with external EGR and SCR Cooling Liquid Engine Speeds High idle - no load rpm 2500 +/- 25 Rated - full load rpm 2500 Low idle rpm 1150 +/- 25 Horsepower per SAE J1349 Gross hp (kW) 90 (67) @ 2500 rpm Horsepower per SAE J1349 Net hp (kW) 84 (63) @ 2500 rpm Peak torque
lb-ft (Nm) 282 (383) @ 1400 rpm Power Train Drive pump electro hydraulic Pump to engine ratio 1:1 Displacement in3 (L) 2.75 (45) Flow gpm (lpm) 29.4 (111) Charge pressure psi (bar) 360 (24.5) System relief psi (bar) 5220 (360) Control Mechanical or Electro hydraulic Drive Motors Effective max displacement in3 (cc) 3.10 (50.9) Speed @ high idle engine rpm 103 Speed @ optional high speed rpm 156 Torque @ max displ. and relief pressure lb-ft (N m) 4654 (6310) Travel Speed Low range mph (km/h) 5.5 (8.9) High range mph (km/h) 8.0 (12.9) Final drive mph (km/h) Planetary gearbox with 2-speed motor Parking Brake Type Spring applied
hydraulic release disc Engagement Depress on/off brake button on instrument panel
disconnect lapbelt
get off seat
or stop engine UNDERCARRIAGE System Zig Zag Pattern Idlers / rollers per side 2/4 Ground Pressure PSI (with spec belt) 4.2 Hydraulic System Pumps Type Gear Displacement standard aux. in3 (cc) 2.23 (36.6) Displacement high flow aux. in3 (cc) 1.45 (23.7) Standard pump flow gpm (Lpm) 24.2 (91.5) Optional high flow gpm (Lpm) 39.9 (150.8) Enhanced High Flow
gpm (Lpm) 35 (132.5) Loader control valve Type 3 spool / open center / series Standard relief pressure psi (bar) 3
450 (237) Enhanced high flow relief pressure psi (bar) 4000 (276) Hydraulic filter 6 microns / spin on CYLINDERS Lift Cylinder Bore diameter in (mm) 2.75 (69.85) Rod diameter in (mm) 1.75 (44.5) Stroke in in (mm) 35.7 (908) Closed length in (mm) 53.9 (1369.1) Bucket Cylinders Bore diameter in (mm) 3.0 (76.2) Rod Diameter in (mm) 1.5 (38.1) Stroke in in (mm) 15.9 (405) Closed length in (mm) 24.3 (617) Rated Operating Load 50% tip lbs. (kg) 4500 (2045) 35% tip lbs. (kg) 3150 (1432) Tipping load lbs. (kg) 9000 (4091) Breakout Forces Lift cylinder lbs. (kN) 7562 (33.6) Bucket cylinder lbs. (kN) 9188 (41.8) Cycle Times Raise sec 5.1 Lower sec 3.5 Dump sec 2.7 Roll back sec 2.0 WEIGHTS Operating weight lbs (kg) 10
610 (4823) Shipping weight lbs (kg) 10
267 (4657) SERVICE CAPACITIES Fuel tank
gal (L) 25.5 (96.5) Engine oil with filter
qt (L) 8.9 (8.5) System Capacity with filter
qt (L) 45.4 (48) DEF tank
gal (L) 2.8 (10.7) Dimensions Overall operating height with foundry/excavating bucket short in (mm) 161.4 (4100) with low profile/standard bucket in (mm) 165.6 (4207) with low profile extended/long bucket in (mm) 170.4 (4329) Height to Bucket hinge pin
in (mm) 131.6 (3342) Top of ROPS
in (mm) 80.4 (2043) Bottom of level bucket
fully raised
in (mm) 123.2 (3129) Overall Length without attachment with coupler
in (mm) 120.2 (3054) with foundry excavation bucket on ground in (mm) 144.6 (3673) with low profile bucket in (mm) 148.8 (3781) with low profile extended bucket in (mm) 153.7 (3904) Dump Dump angle
degrees 45.3 Dump height with foundry/excavating bucket short in (mm) (mm in) 104.1 (2645) @ 45° Dump height with low profile/standard bucket in (mm) 101.1 (2568) @ 45° Dump reach (max height)
in (mm) 31.6 (802) @ 45° Maximum attachment rollback Bucket on ground degrees 32 Bucket at full height degrees 83.1 Track and clearance Track on ground in (mm) 64.5 (1639) Ground clearance (bottom of belly pan)
in (mm) 9.6 (244) Angle of departure
degrees 32 Clearance circle without bucket
in (mm) 57.7 (1465) With foundry bucket in carry position in (mm) 88 (2234) With low profile bucket on ground in (mm) 91.8 (2331) With extended low profile bucket on ground in (mm) 96.2 (2444) Clearance circle rear
in (mm) 67.9 (1725) Track gauge in (mm) 58.6 (1488) Overall width
in (mm) 76.5 (1943)
