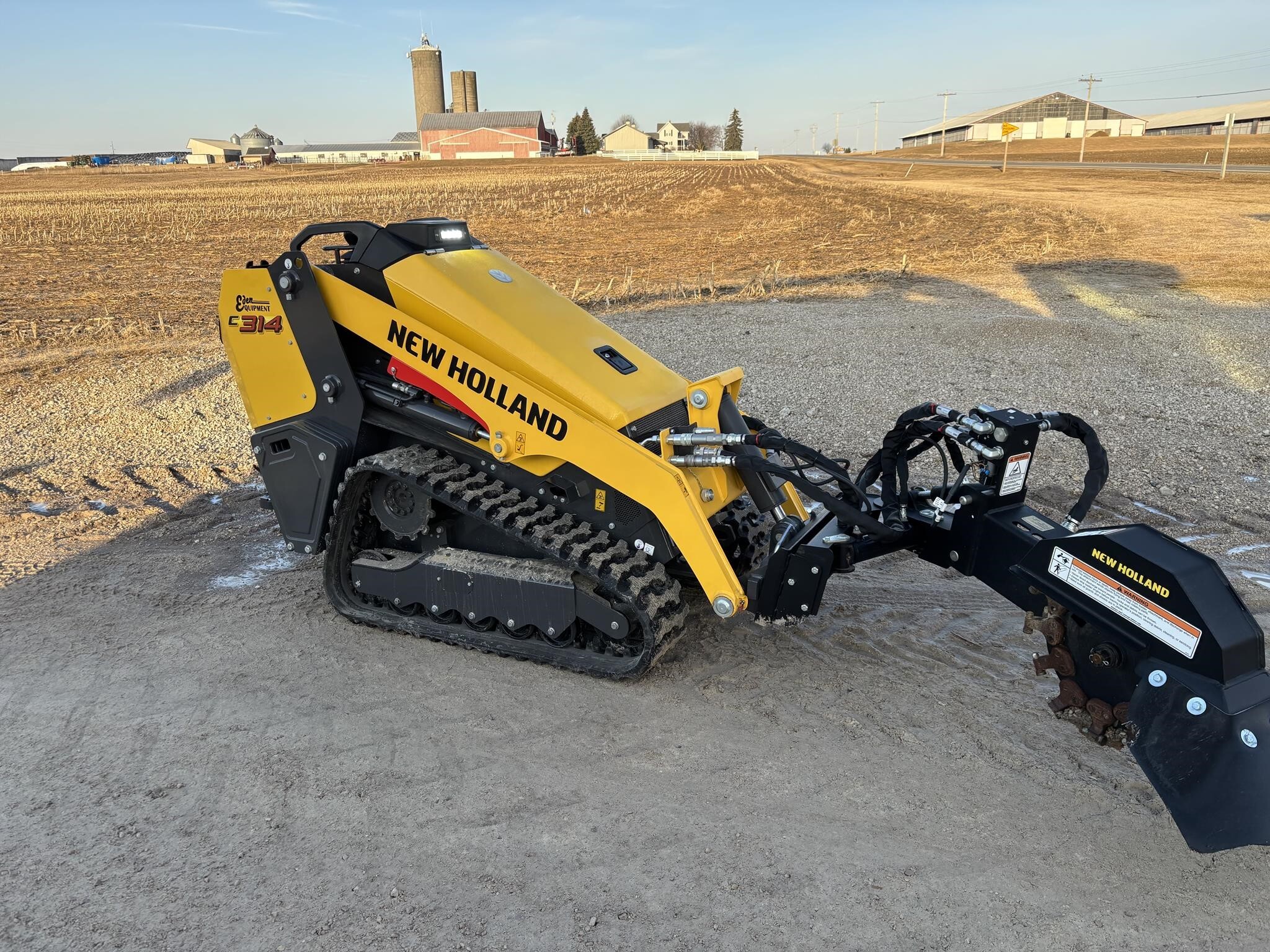

2024 New Holland C314 Skid Steer
Call for price
5 hours
Extended Warranty
Safeguard your equipment investments effortlessly with Machinery Scope. We provide Powertrain, Powertrain +, and Ultimate coverage options for up to three additional years. Click the button to request a hassle-free quote and discover how we can protect your valuable assets.
Extended Warranty
2024 New Holland C314 Skid Steer
Call for price
Extended Service Plan
Safeguard your equipment investments effortlessly with Machinery Scope. We provide Powertrain, Powertrain +, and Ultimate coverage options for up to three additional years. Click the button to request a hassle-free quote and discover how we can protect your valuable assets.
Shipping
It's easy to get a shipping quote! Click the button below and complete the form. Your information will be kept confidential and will not be shared with third parties.
Request Shipping Quote
2024 New Holland C314 Skid Steer
Shipping Quote
Complete the form below and we'll contact you soon about your shipping estimate. All fields required.
Our shipping partner, Valley Transportation, will ensure your equipment is shipped in the fastest, safest, and most economical way possible. With over 35 years of experience, Valley Transportation is a trusted partner for manufacturers, dealers, and equipment companies across the lower 48 states.
Key Specifications
Detailed Specifications
Seller Comments
Model: Kubota D1305-E4B
Type: 3-cylinder diesel
Displacement: 77.0 in³ (1.261 L)
Gross Horsepower: 24.8 hp (18.5 kW) @ 2,600 RPM
Peak Torque: 59.1 lb·ft (80.1 N·m) @ 1,700 RPM
Dimensions:
Overall Height: 56.5 in (1,435 mm)
Overall Length without Bucket: 85.6 in (2,175 mm)
Machine Width:
Narrow Track: 35.0 in (890 mm)
Wide Track: 40.4 in (1,026 mm)
Bucket Width:
Narrow Track: 36.0 in (914 mm)
Wide Track: 42.0 in (1,067 mm)
Performance:
Operating Weight:
Narrow Track: 3,536 lbs (1,604 kg)
Wide Track: 3,783 lbs (1,716 kg)
Rated Operating Capacity (ROC) @ 50% Tipping Load:
Narrow Track: 1,416 lbs (643 kg)
Wide Track: 1,574 lbs (714 kg)
Tipping Load:
Narrow Track: 2,833 lbs (1,285 kg)
Wide Track: 3,148 lbs (1,428 kg)
Lift Geometry: Radial Lift
Hydraulics:
Standard Flow @ Rated Engine RPM: 15 gpm
Implement Hydraulics Operating Pressure: 2,800 psi (190 bar)
Capacities:
Fuel Tank: 7.9 gal (30 L)
Hydraulic System: 4.5 gal (17 L)
